PCBLion provides an end-to-end Turnkey PCB Assembly solution that integrates PCB fabrication, component procurement, and SMT assembly into a single, streamlined workflow.Whether you need 5 prototype boards in 48 hours or 10,000 units for mass production, PCBLion acts as your centralized manufacturing department.

GET STARTED
VIEW CAPABILITIES

PCBLion's Turnkey Assembly Capabilities

Items Specification
Service Scope PCB Fabrication + Component Procurement + Assembly + Testing + Logistics
SMT Production Lines 8 fully automated lines, 45 million points/day
Component Size Range Passive: 01005 (Imperial) / 0402 (Metric); IC: 0.25mm pitch BGA, CSP, LGA, QFN
Advanced Packaging POP (Package-on-Package), Micro BGA, CSP
Reflow Environment Nitrogen atmosphere (Heller 1809 MK5, O₂ < 1000 PPM)
Solder Paste Type 4/Type 5 for fine-pitch (Alpha/Senju brands)
Stencil Laser-cut stainless steel with nano-coating
Quality Inspection 3D SPI (Koh Young), 3D AOI, X-Ray (void < 15%), FAI
Component Sourcing Authorized channels only (Digi-Key, Mouser, Arrow, Avnet, WPG, Future)
Anti-Counterfeit Policy Zero-counterfeit guarantee with factory CoC
Inventory Management Blanked orders, bonded inventory, 12-month forecast + on-demand delivery
Quality Certifications IATF 16949:2016, ISO 13485:2016, ISO 9001:2015, UL
First Pass Yield (FPY) > 99.0%
PCB Layer Count 2-40 layers (in-house fabrication)
Lead Time 18-35 days (component availability dependent)
Batch Size From 10 units (NPI) to 50,000 units/month

What "Turnkey" Really Means: Complete Accountability

Traditional Multi-Vendor Challenges

  • Finger-Pointing: PCB fab blames assembly house; assembly house blames component supplier.
  • Lead Time Uncertainty: Waiting for parts from 5 different distributors.
  • Quality Gaps: No single entity owns end-to-end quality.
  • Counterfeit Risk: Open-market brokers selling remarked or recycled components.

PCBLion's Turnkey Advantage

  • Single Point of Contact: One engineering team manages your entire project.
  • Integrated Timeline: PCB fab and assembly scheduled in parallel (saves 5-7 days).
  • Unified Quality System: ISO 9001, IATF 16949, ISO 13485 applied across all processes.
  • Supply Chain Transparency: Every component tracked from authorized distributor to your board.

Service Scope: What We Manage for You

1. Design for Manufacturability (DFM) Review

Before you commit to production, our CAM engineers analyze your design:

    • Minimum trace/space violations.
    • Aspect ratio feasibility (PTH depth vs. diameter).
    • Impedance stack-up validation (±5% tolerance for RF/high-speed).
    • BGA fan-out and escape routing.
    • Via-in-pad requirements (resin filling needed?).
    • Test point accessibility for ICT/FCT.

Output: DFM report with red-flag items and optimization suggestions (delivered within 24 hours).

2. Component Procurement: Authorized Sourcing Channels Only

Every component batch undergoes:

  1. Visual Inspection: Package integrity, date code verification, moisture barrier check.
  2. LCR Testing: Passive components measured for value accuracy (±1% tolerance).
  3. X-Ray Inspection: For ICs from non-franchised sources (detects remarked chips).
  4. Lot Code Traceability: Recorded in MES system for full supply chain visibility.

3. PCB Fabrication: In-House Control

  • No Middleman Delays: We control the PCB production schedule.
  • Quality Consistency: Same impedance test equipment (Polar CITS500s) used for all boards.
  • Fast Iteration: If assembly reveals a PCB issue, we can re-fab in 48 hours.

4. PCB Assembly: Component Handling Standards

  • ESD Control: ANSI/ESD S20.20 compliant.
  • MSL Management: JEDEC J-STD-033 moisture-sensitive component storage.
  • Solder Paste: Type 4/Type 5 for fine-pitch, stored at 2-10°C.


5. Testing & Quality Control: 100% Inspection

Automated Optical Inspection (AOI)

  • Pre-Reflow AOI: Detects paste printing defects.
  • Post-Reflow AOI: Identifies component placement errors.
  • Detection Rate: > 99.5% for visible defects.

X-Ray Inspection (Mandatory for BGA/QFN)

  • Purpose: Verify solder joint quality under components.
  • Acceptance Criteria: Void area < 15% per IPC-A-610 Class 2.
  • Equipment: Unicomp X7600 (2D/3D imaging).

Functional Circuit Test (FCT)

  • Custom Fixtures: Test jigs based on your test plan.
  • Test Coverage: Power-on, I/O, communication protocols.
  • Data Logging: Results stored in MES for traceability.

6. Final Packaging & Logistics

  • ESD Protection: Anti-static bags with desiccant for MSL components.
  • Cushioning: Foam inserts or vacuum-formed trays for fragile assemblies.
  • Shipping Options: Express or Economy Sea freight.
Component Obsolescence

Solution: Lifecycle monitoring, alternative sourcing suggestions, and last-time buy support.

Long Lead Times

Solution: Blanket orders with 12-month forecasts, bonded inventory, and consignment options.

Price Volatility

Solution: Price lock for 6-12 months on blanket orders and transparent pass-through pricing.

Counterfeit Components

Solution: Authorized-only policy, IQC testing (LCR + X-Ray), and full MES traceability.

Dedicated Project Manager

Every turnkey project is assigned a PM who coordinates between teams, provides weekly status reports, and flags risks immediately.

Phase Typical Duration Deliverable
DFM Review 1-2 days DFM report with optimization suggestions
Component Procurement 5-15 days Parts arrival confirmation
PCB Fabrication 8-16 days Bare boards ready for assembly
Assembly & Testing 3-7 days Assembled boards with test reports
Final QC & Packaging 1-2 days Shipment ready

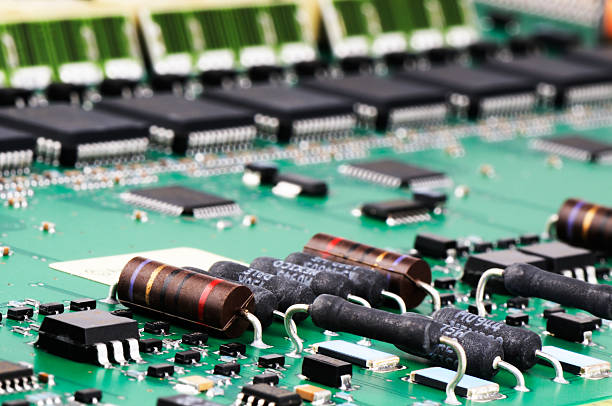

Turnkey PCB Assembly

Quality Assurance: Certifications & Standards

ISO Certifications

ISO 9001:2015 / IATF 16949:2016 / ISO 13485:2016 / ISO 14001

Industry Standards

IPC-A-610 Class 2/3 / IPC-J-STD-001 / IPC-7711/7721

Yield Targets

PCB Fab: > 99.2% / PCBA FPY: > 99.0% / Defect Rate: < 100 DPPM

Risk Control: What Sets Us Apart

1. Component Authenticity

Authorized-only sourcing + X-Ray inspection for suspicious batches.

2. ESD Damage

ANSI/ESD S20.20 compliant workstations and full operator grounding.

3. Moisture-Induced Failures

Dry cabinet storage (< 10% RH) and baking per JEDEC J-STD-033.

4. Solder Joint Voids

Nitrogen reflow (O₂ < 1000 PPM) and mandatory X-Ray for BGA/QFN.

Frequently Asked Questions

Everything you need to know about our manufacturing process and services.

No MOQ. We accept orders from 10 units to 50,000 units.

Yes, but only from authorized channels. We will NOT use open-market brokers.

Yes. Ship your pre-purchased parts to us; we’ll perform IQC and integrate them.
