Automotive Electronics PCB
Manufacturing & Assembly
PCBLion provide full-lifecycle manufacturing designed for the strict demands of electric and autonomous vehicles. By integrating advanced PCB fabrication, precision SMT assembly, injection molding, and final Box Build packaging, we deliver zero-defect, ready-to-market solutions that guarantee mission-critical safety and performance.
Advanced Materials for the Top 3 Automotive Systems
As vehicles transition to smart computers on wheels, base materials are undergoing a revolution. We stock and process the specialized laminates required for your core systems:
PCBLion Comprehensive Manufacturing Capabilities
Engineered to exact tolerances. Bridging standard production and advanced micro-electronics.
| Technical Feature | Standard Capability | Advanced Capability (High-End) |
|---|---|---|
| Layer Count | 1 - 12 Layers | 14 - 40 Layers |
| Min. Trace / Space | 6 mil / 6 mil (0.15mm) | 2 mil / 2 mil (0.05mm) |
| Min. Hole Size | 8 mil (0.2mm) Mechanical | 4 mil (0.1mm) Laser Microvia |
| Hole Aspect Ratio | 7 : 1 | 15 : 1 (High Throwing Power) |
| Min. BGA Pitch | 1.0 mm | Down to 0.3 mm (Ultra-fine pitch) |
| Copper Weight | 0.5 oz - 3 oz | 4 oz - 10 oz (Heavy Copper) |
| Board Thickness | 0.25mm - 5.0mm (0.010" - 0.200") | Ultra-thin 0.12mm (0.005") to Thick 12.7mm (0.500") |
| Min. Drill-to-Copper | 10 mil | 5 mil (High-precision registration) |
| Surface Finish | HASL (Lead-Free), OSP, Immersion Tin | ENIG, ENEPIG, Hard/Soft Gold, Immersion Silver |
| Advanced Features | Plated Slots, Countersink / Counterbore | Edge Castellation, Plated Edges, Via-in-Pad (Filled Vias), Controlled Impedance |
| Special Technology | Rigid FR4, Aluminum Core | Rigid-Flex, Pure Flex, RF/Microwave, Blind & Buried Vias |
| Quality & Testing | IPC-6012 Class 2, 100% Netlist Testing | IPC-6012 Class 3, Polar TDR Testing, Aerospace-Grade Compliance |
| Quick-Turn Lead Time | 24h - 48h (1-6 Layers) | 3 - 7 Days (6-16 Layers & Advanced Tech) |
| Corrosion Resistance 48h Neutral Salt Spray 1000h Acid Salt Spray Ultra-thick solder mask (>40μm) + Nano-coating |
1. ADAS & 77GHz Millimeter-Wave Radar
Technology: PTFE Hybrid Lamination (Rogers RO4835™ + FR4). Performance: Signal loss < 0.2dB/inch. Dk=2.55±0.05 @10GHz. Precision: Copper roughness ≤0.8μm (HVLP copper). Layer deviation ≤50μm to guarantee antenna phase consistency.

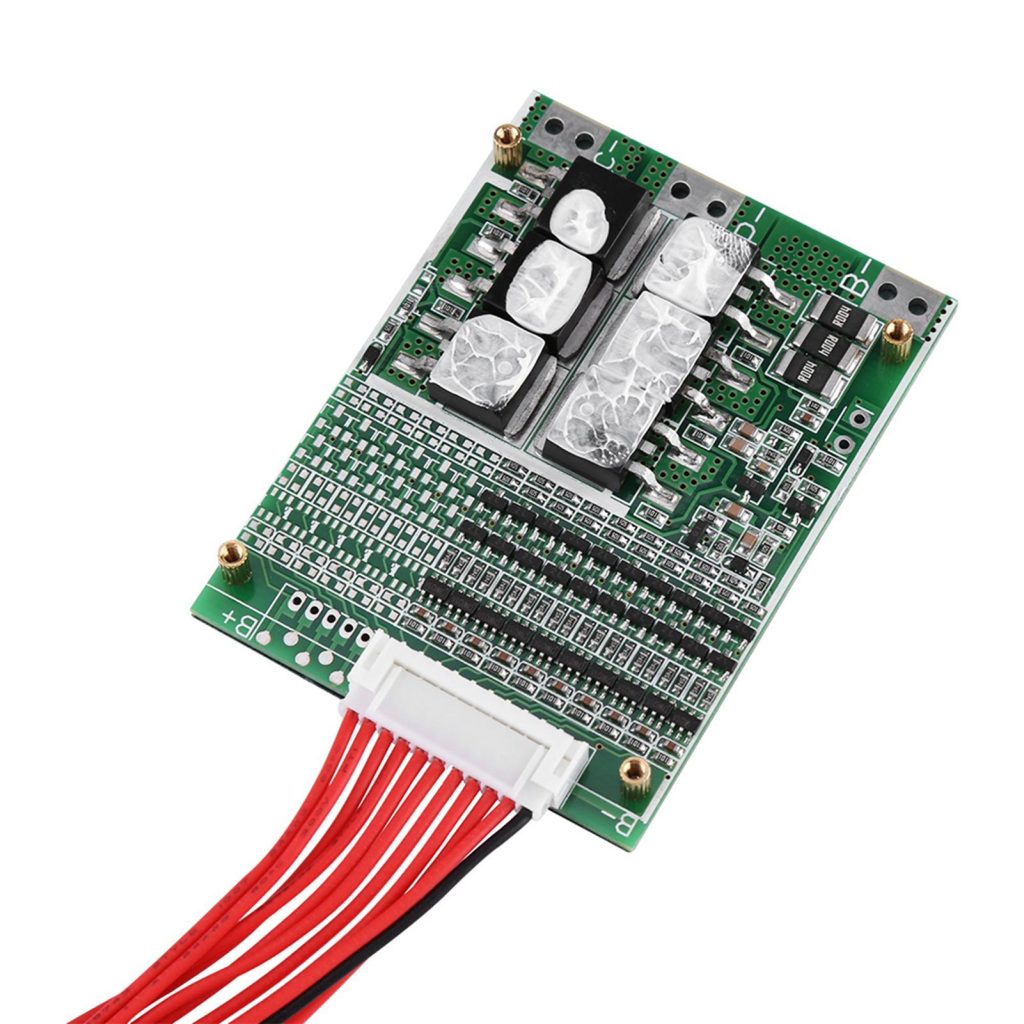

2. Battery Management Systems (BMS)
Technology: High Thermal Conductivity Metal Core PCBs (MCPCB). Performance: Solves IGBT module heat dissipation with thermal conductivity >8W/(m·K). Specs: Insulation withstand voltage >4kV. 2oz to 10oz heavy copper capable of carrying 200A+ currents.
3. Domain Controllers & Smart Cabin
Technology: Any-Layer HDI Interconnects. Precision: 0.1mm laser microvias and 3mil/3mil trace/space to support complex SoCs. Specs: Laser drill accuracy ±10μm; Via fill dimple <15μm; Impedance control ±5%.

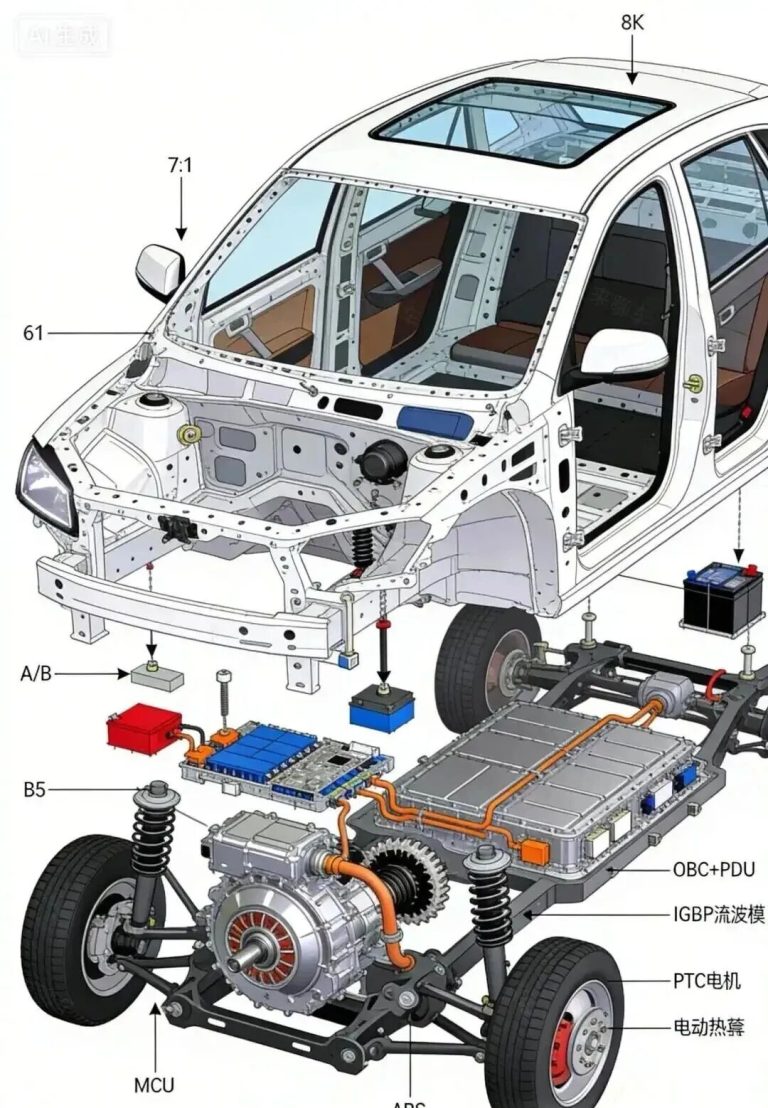

EV & Autonomous Vehicle Manufacturing Solutions
PCBLion provides end-to-end electromechanical manufacturing for the automotive sector. From high-density PCB assembly to high-voltage wire harnesses and ruggedized box builds, we deliver zero-defect solutions for mission-critical vehicle systems.
Automotive PCB Assembly (PCBA)
The compact and high-density designs of modern EVs require robust PCBA techniques. We specialize in Heavy Copper (up to 14oz) for power dissipation and HDI Any-Layer technology for complex logic circuits. Every board undergoes 100% 3D SPI and X-Ray inspection to ensure solder joint integrity under vibration.
- Powertrain & Power: Battery Management Systems (BMS), On-Board Chargers (OBC), DC-DC Converters, and Motor Controllers.
- ADAS & Safety: Radar/LiDAR processing boards, Airbag Control Units (ACU), and Vehicle Control Units (VCU).)
- Body & Cabin: Instrument clusters and Body Control Modules (BCM).
Custom Cable & Wire Harness Assembly
EVs require complex power distribution and noise-free data routing. We manufacture custom cable assemblies designed to minimize Electromagnetic Interference (EMI) and prevent short circuits in harsh environments.
- High-Voltage (HV): Power distribution harnesses for charging infrastructure, battery packs, and inverter-to-motor connections.
- Data & Sensors: Shielded communication cables for ADAS sensors, actuators, and telematics networks.
- Interior Systems: Infotainment and safety system wiring arrays.
Electromechanical Box Build Integration
PCBLion offers turnkey Box Build assembly, integrating sensitive electronics into custom mechanical enclosures (plastic or die-cast metal) to achieve automotive-grade durability and IP67+ weatherproofing.
- System Assemblies: Fully integrated Power Distribution Boxes (PDU), Inverter assemblies, and Energy Management modules.
- Protection: Automated Conformal Coating and Potting services to protect against salt spray, moisture, and chemical corrosion.
- System Testing: End-of-line Functional Circuit Testing (FCT), Hi-Pot (High Voltage Isolation) testing, and Burn-in aging.
Full-Vehicle Electronics Manufacturing Capabilities
We don’t just understand the vehicle’s architecture; we engineer the PCB solutions required for each domain’s unique thermal and electrical challenges.
EV Powertrain & Battery Management (BMS)
Managing massive currents (up to 200A) and dissipating extreme heat in compact enclosures.
We fabricate Heavy Copper PCBs (up to 14oz) and Direct Thermal Path (DTP) Metal Core boards. Our lamination process uses high-flow prepregs to ensure void-free insulation for high-voltage (800V) platforms, strictly preventing dielectric breakdown.

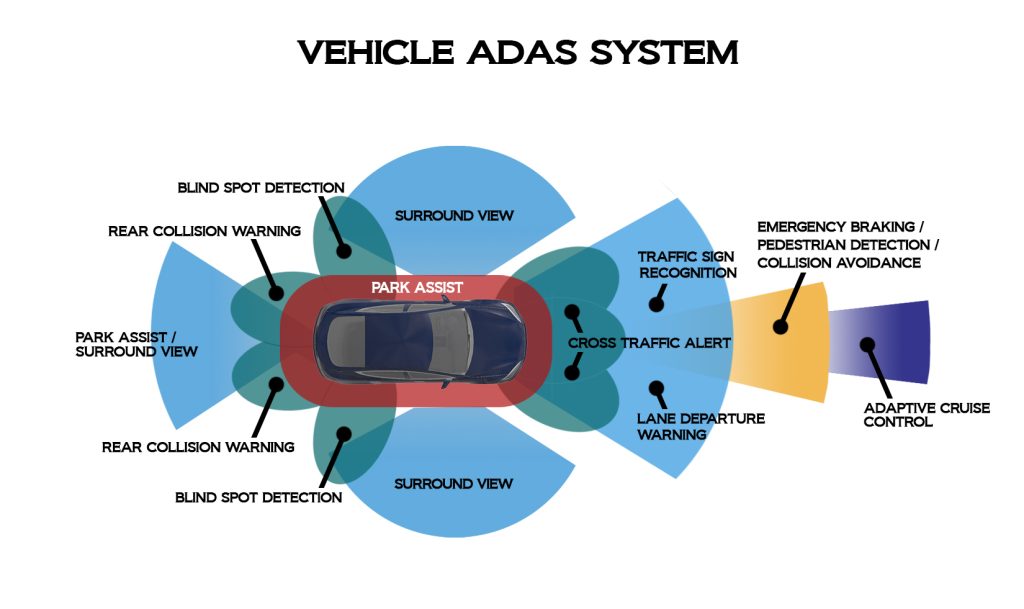

Safety Systems & ADAS
Zero-tolerance for signal loss or solder joint failure in Airbag Control Units (ACU), ABS, and 77GHz Radar.
Manufactured strictly to IPC-A-610 Class 3 standards. We utilize hybrid stack-ups (Rogers RO4835 + FR4) with precise ±0.0005" etching tolerances for radar antennas, verified by 100% 3D X-Ray (AXI) for BGA solder joint integrity.
Domain Controllers & Infotainment
Routing high-pin-count processors (SoCs) and memory modules within a highly constrained dashboard space.
We deploy Any-Layer HDI technology (up to 7+N+7) with 3mil laser-drilled microvias. Our VIPPO (Via-in-Pad Plated Over) process ensures perfectly flat pads for 0.35mm pitch BGAs, guaranteeing high-speed data transmission (PCIe, Automotive Ethernet).

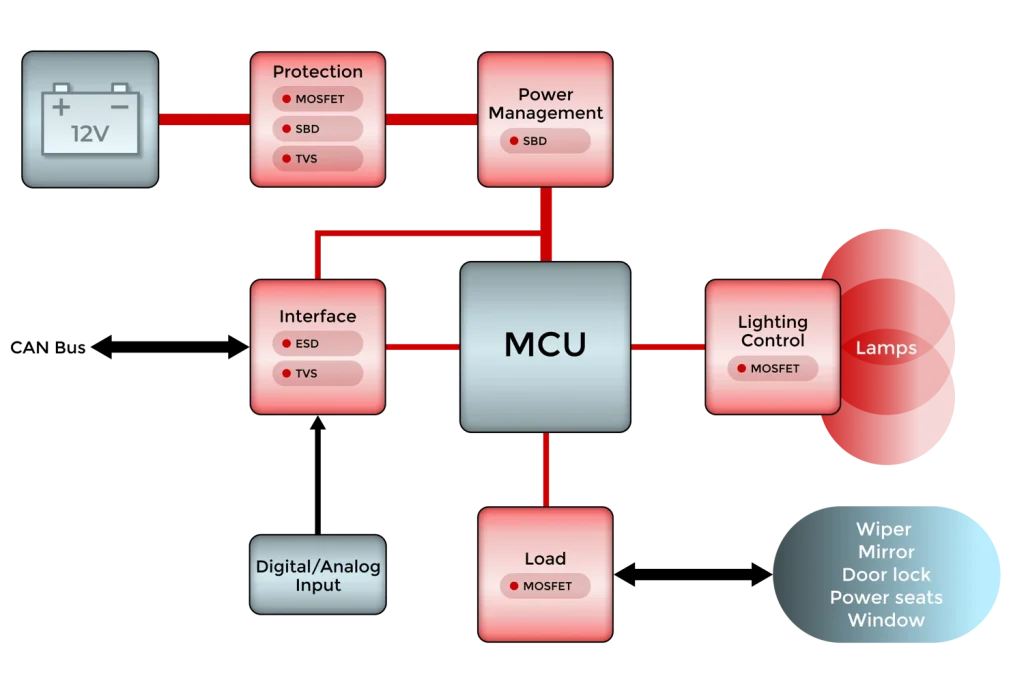

Body Control Modules (BCM) & Sensor Arrays
High-mix assembly of hundreds of sensors (temperature, pressure, proximity) and lighting drivers exposed to dust and moisture.
We offer automated Conformal Coating (Acrylic/Silicone) to protect boards from harsh cabin environments. Our MES traceability system records every component lot code for 15+ years to support your PPAP requirements.
The PCBLion Automotive Advantage
Our Manufacturing Execution System (MES) tracks every component lot code and assembly parameter for recall-proof data retention (15+ years).
All AEC-Q100 and AEC-Q200 components are sourced strictly through authorized channels
We provide comprehensive Production Part Approval Process documentation, including Control Plans and PFMEA.
Manufactured in a strictly audited IATF 16949:2016 and ISO 9001 certified facility. We meet the ultimate standards for automotive safety.
Why Engineers Switch to Us
“PCBLion’s PPAP Level 3 documentation was flawless during our VDA 6.3 audit. Their heavy copper capabilities for our EV motor controllers resolved our thermal issues completely. A true automotive-grade partner.”
— Lead Electronics Engineer, EV Powertrain
Frequently Asked Questions
Do you support PPAP Level 3?
Yes. We provide complete documentation including Process Flow, Control Plan, PFMEA, MSA, and Cpk studies.
Can you handle mid-program ECNs?
Absolutely. We follow a formal Engineering Change Notice process with full impact analysis.
How ensure AEC-Q100/Q200?
We verify all parts against AEC standards at incoming inspection via our authorized-only sourcing policy.
What if a part goes EOL?
We monitor lifecycles quarterly, notify you 12+ months in advance, and suggest qualified alternatives.
What's the traceability period?
15 years. We maintain lot codes, panel IDs, and test data for the full automotive program lifecycle.
Automotive Cybersecurity?
Yes. We support secure flashing, component authentication, and controlled access for ISO 21434 compliance.
